Purpleline Kojack Single Axle Jack Levelling System For Caravan KJ4000S
Does your caravan have a jacking point? kojack is the answer.
Custom designed brackets allow you to easily and effortlessly jack & level your caravan without the need for drilling your caravan chassis; which can void your warranty. Kojack fits 99% of caravans.
“Wherever you park your caravan you can always have the perfect pitch.
Designed in the Purple Line’s UK innovation centre the 3-Tier hydraulic bottle jack, connects into the dedicated safe anchor points, which are attached to your chassis. The brackets bolt in to pre-existing holes that are standard on most AL-KO & BPW chassis.
Kojack has full TUV CE accreditation and a safe working load (SWL) of 2000kg.

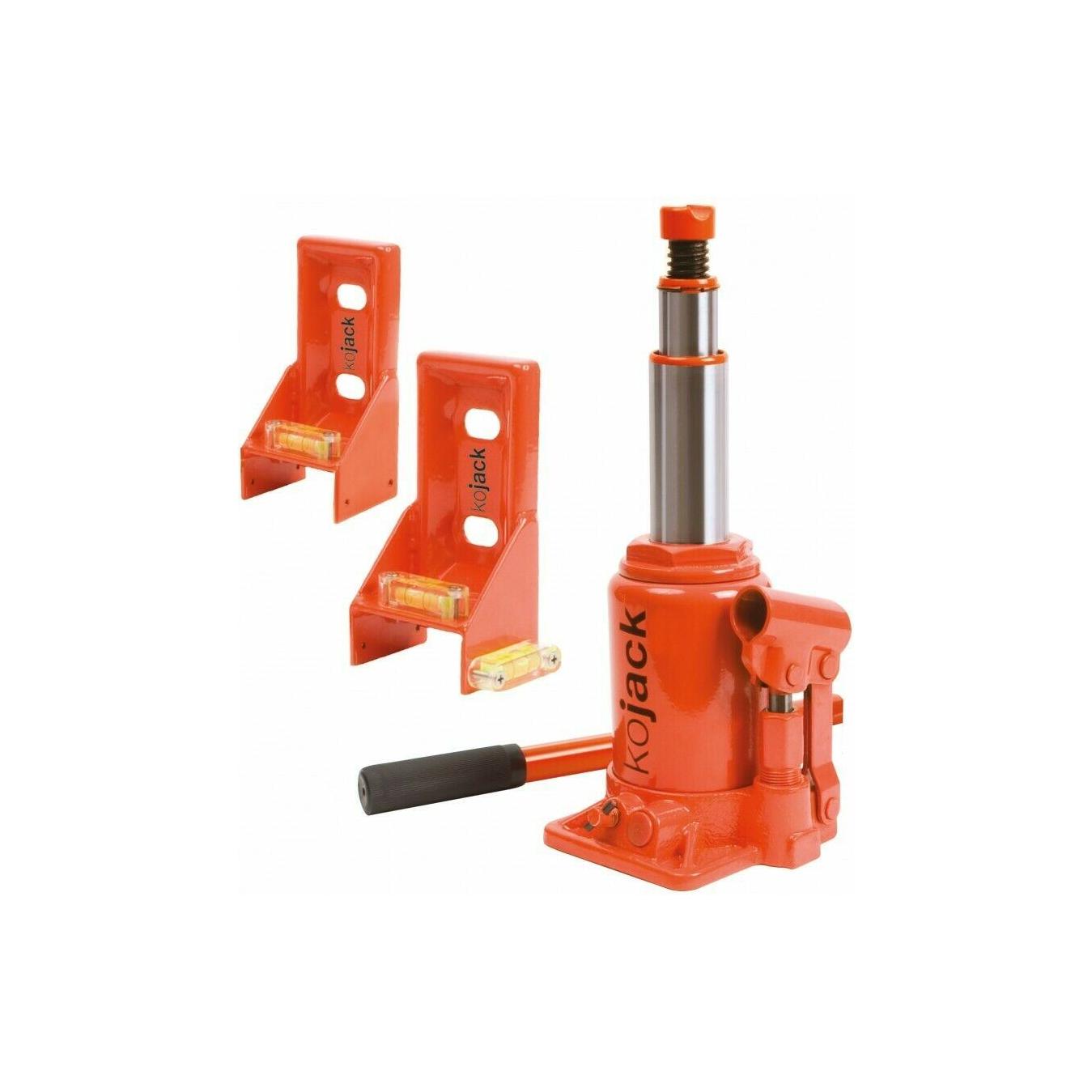

The kojack set includes a 3-tier hydraulic bottle jack, 2 x chassis brackets with integral spirit levels and all necessary fittings an fixings.
For more information watch our videos

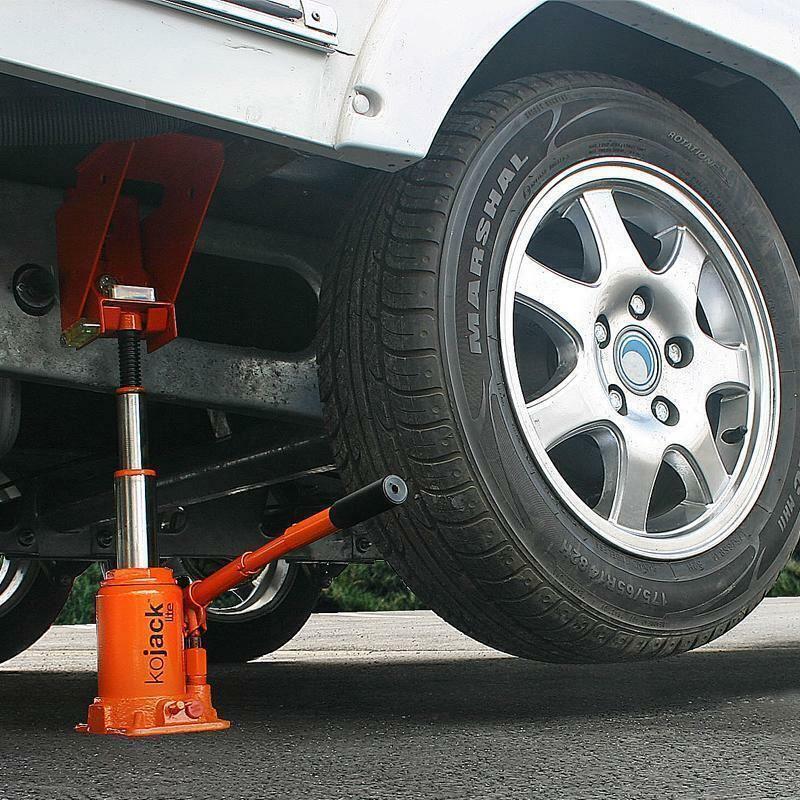

Kojack Hydraulic caravan jack & levelling system…. Quick wheel changes and the perfect pitch.
| Product | KJ4000S |
| Total Weight | 6.1kg |
|
Jack Weight Jack Compressed Height Jack Extended Height Jack Width Jack Depth Bolt size |
4.7kg 170mm 390mm 140mm 130mm 19mm M12 |
|
L-Bracket Weight L-Bracket Height L-Bracket Width L-Bracket Depth |
0.7kg 155mm 95mm 60mm |
| No. of L-Brackets in Box | 2 |
|
V-Bracket Weight V-Bracket Height V-Bracket Width V-Bracket Depth |
1.4kg 150mm 110mm 180mm |
| No. of V-Brackets in Box | 0 |
| Spirit Levels | Yes |
| Safe Working Load | 2000kg |
| Hole Spacing (From Centre) | 55mm |
| Total Vehicle Weight | 4000kg |
