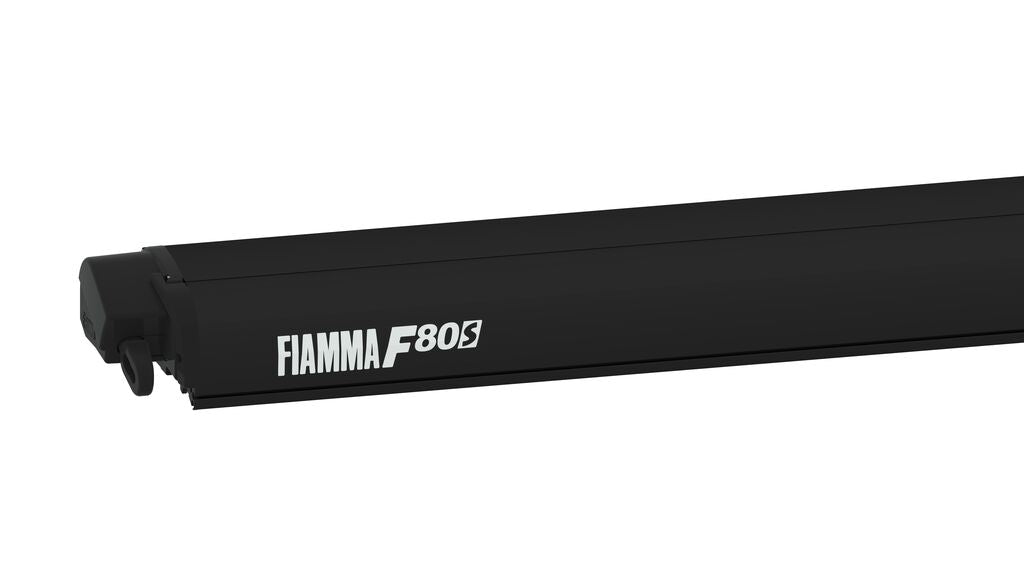

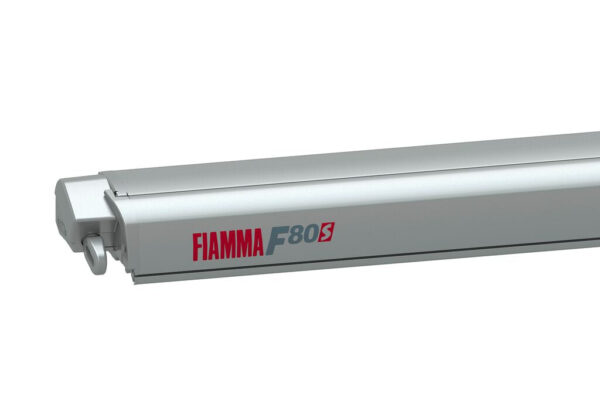

Fiamma F80 S Roof Awning

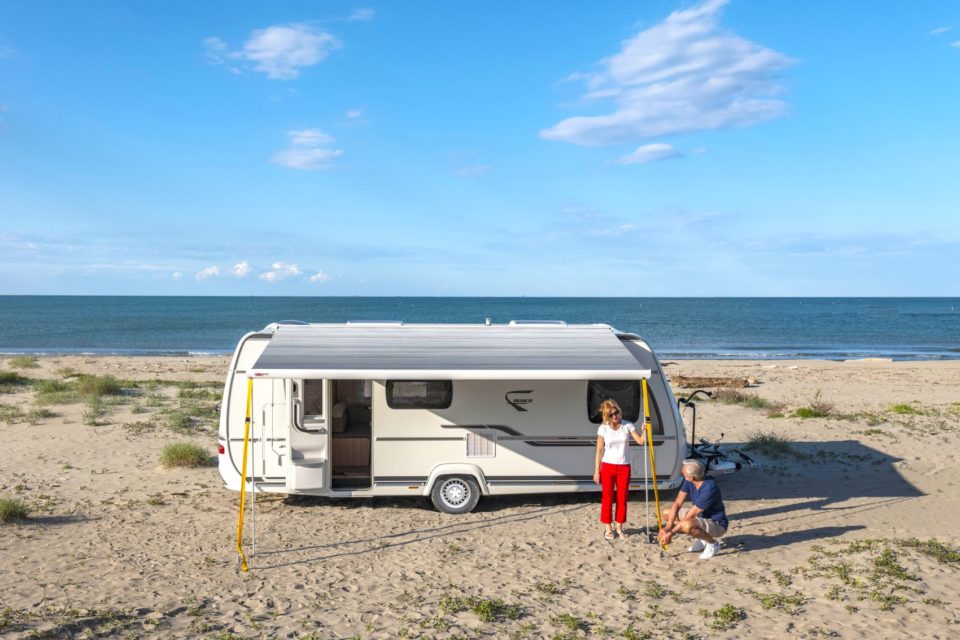

Being roof mounted, the Fiamma F80 is the ideal fit for Campervans with high sliding doors where there isn’t room for a wall mounted awning, and also offers a less obtrusive fitting option for an increasing number or modern Caravans and Motorhomes when used with the appropriate fitting kit.
The Fiamma F80S replaces Fiamma previous F65S roof mounted awning and boasts a more compact awning case profile giving a neater, less obtrusive fit with crisp lines to match modern vehicles designs. The updates features and improved options including motor kit, triple lead bar channel and light kit compatibility make the F80 a more versatile and customisable awning.
Features
Dual LED Predefined position in lead bar + case: Housings for the addition of the optional LED Strip Awning full-length lighting kit (5m adhesive strip) are made inside the case and the lead bar
Compact section: Case and lead bar are more compact but as strong as ever. The awning has improved aerodynamic performance as a result of having a 20% slimmer cross-section than F65s model
Triple Guide: Three guides on the lead bar (highlighted in red in the detail) for fitting two front panels and other accessories
Secure Lock: The legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
Aluminium end caps: New design for the aluminium end caps for maximum strength
Extra-Strong Arms: Wider, reinforced and articulated arms with double steel cable for optimal canopy tensioning
Compatibility
A fitting kit is NOT supplied as standard with the Fiamma F80 awning as the correct brackets have to be selected to match your particular vehicle. Due to its prevalence as a donor vehicle in the leisure industry we find these awnings are most commonly fitted to Fiat Ducato / Peugeot Boxer / Citreon Relay vans but a range of specialist installation kits are available to suit other vehicles including
- Fiat Ducato / Peugeot Boxer / Citreon Relay (Jumper) family of vans
- Renault Master / (Opel) Vauxhall Movano / Nissan Interstar and NV400 van family
- VW Crafter / Mercedes Sprinter generation after 06/2006
- Iveco Daily vans
- Coachbuilt Motorhomes including Elddis, Hymer and Autocruise
- Fiamma Fixing Bar and roof rack installation
- Generic flat roof installation
Fiat Ducato / Peugeot Boxer Fitting Table
Specification
| Description | Case Length A |
Fabric Length B |
Awning Extension C |
Shade Area | Weight |
|---|---|---|---|---|---|
| F80S 290 | 290 cm | 278 cm | 200 cm | 5.6 m2 | 27 kg |
| F80S 320 | 320 cm | 308 cm | 250 cm | 7.7 m2 | 29 kg |
| F80S 340 | 340 cm | 328 cm | 250 cm | 8.2 m2 | 30 kg |
| F80S 370 | 370 cm | 358 cm | 250 cm | 9 m2 | 32 kg |
| F80S 400 | 400 cm | 388 cm | 250 cm | 9.7 m2 | 34 kg |
| F80S 425 | 425 cm | 412 cm | 250 cm | 10.3 m2 | 35 kg |
| F80S 450 | 450 cm | 431 cm | 250 cm | 10.8 m2 | 36.5 kg |
Fiamma F80S – Standard Equipment
- 1 x Fiamma F80S Awning
- 1 x Winding handle
- 1 x Winding handle storage clips
- 4 x ground pegs
- Awning Leg wall support kit
- Fiamma Awning Rafter included ONLY on lengths 400, 425 and 450
Fiamma F80S – Optional Equipment
The Fiamma F80S awning can be customised with a range of accessories including;
- A choice of rafters and Magicrafter to add structural support
- Fiamma Tie Down or Tie Down S
- Fiamma Pegs and Plates kits
- A range of blocker side panels or complete Privacy Room enclosures (not F80S 290 length)
- LED lighting kits
