Brightstar Fires Square Gas Fire Pit Burner Kit

Brightstar Fires Square Gas Fire Pit Burner Kit

Square Fire Pit Gas Burner Kit

The square gas fire pit kit is designed for permanent installation into the landscaping or hardscaping of your garden, patio, or other outdoor area.

There is an option for Natural Gas (Mains Gas) or Propane Gas (LPG).

You design the fire pit and surround the recessed fire pit kit with non-combustible materials like concrete, bricks, stone, or pavers.

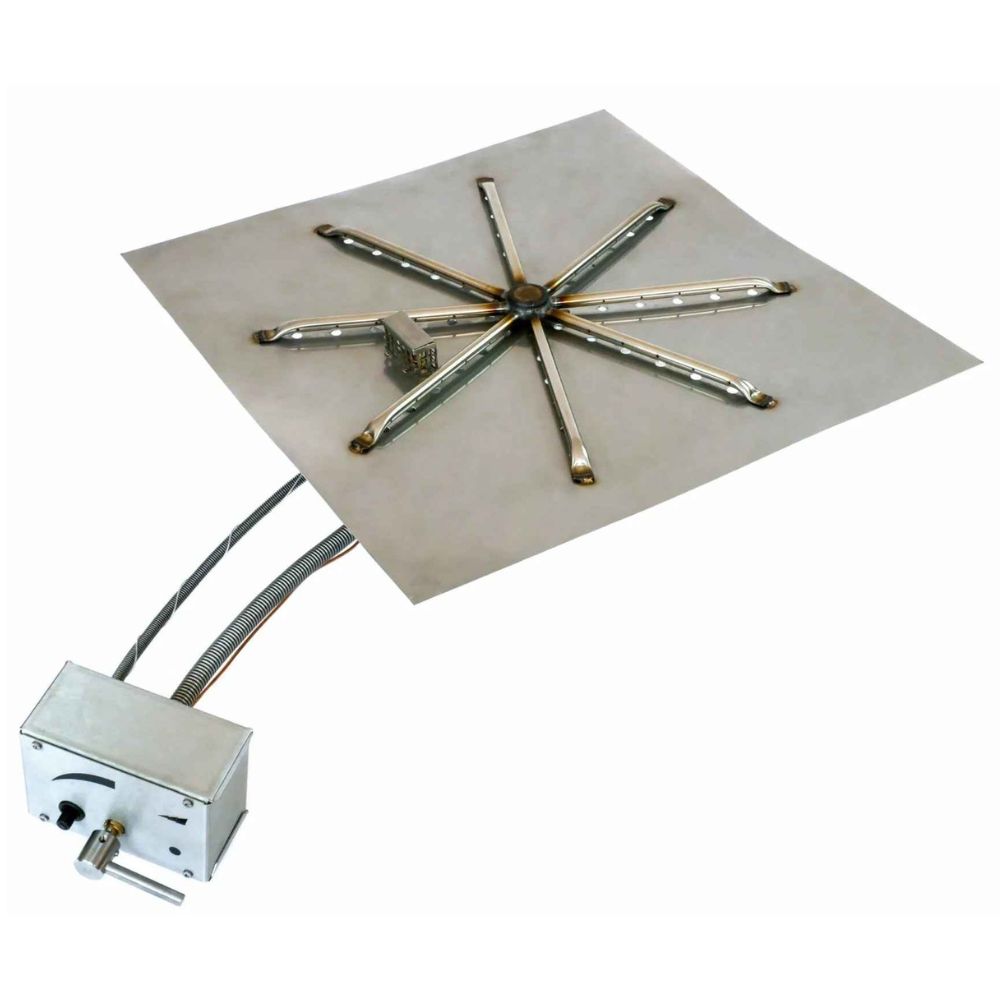

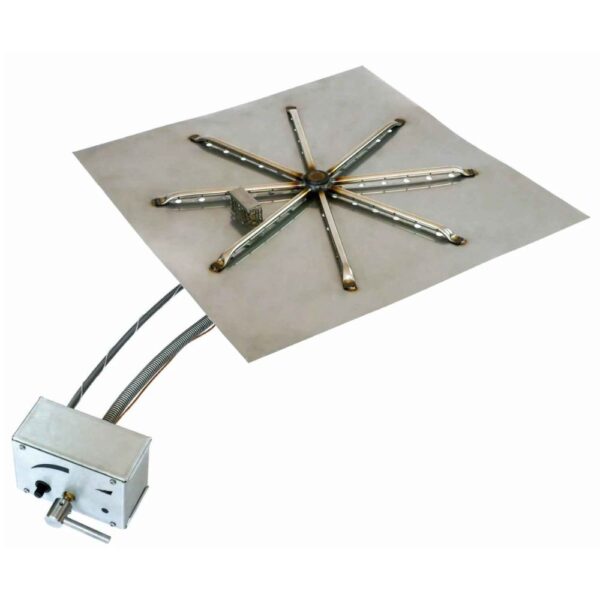

The Brightstar Fires 60 x 60 cm stainless steel square gas fire pit burner kit allows you to create a warming and inviting fire focal point in your outdoor space.

This adjustable and powerful gas fire pit burner kit produces tall, natural-looking flames in a star shape that concentrate towards the centre.

Once installed, place the lava rock (included) over the burner to enhance the fire visuals and experience.

With 18kW maximum heat output, adjust the flame height to your desired level of warmth.

The push-button battery ignitor starts the fire conveniently without needing mains power.

Crafted from durable stainless steel in the UK, this square gas fire pit burner kit contains the essential components to create a stunning and safe outdoor fire feature.

Square Fire Pit Gas Burner Kit Key Features

• Made in the UK

• For use with LPG bottle or mains natural gas

• Powerful 18kW max heat output

• Adjustable flame height

• Push-button battery ignitor

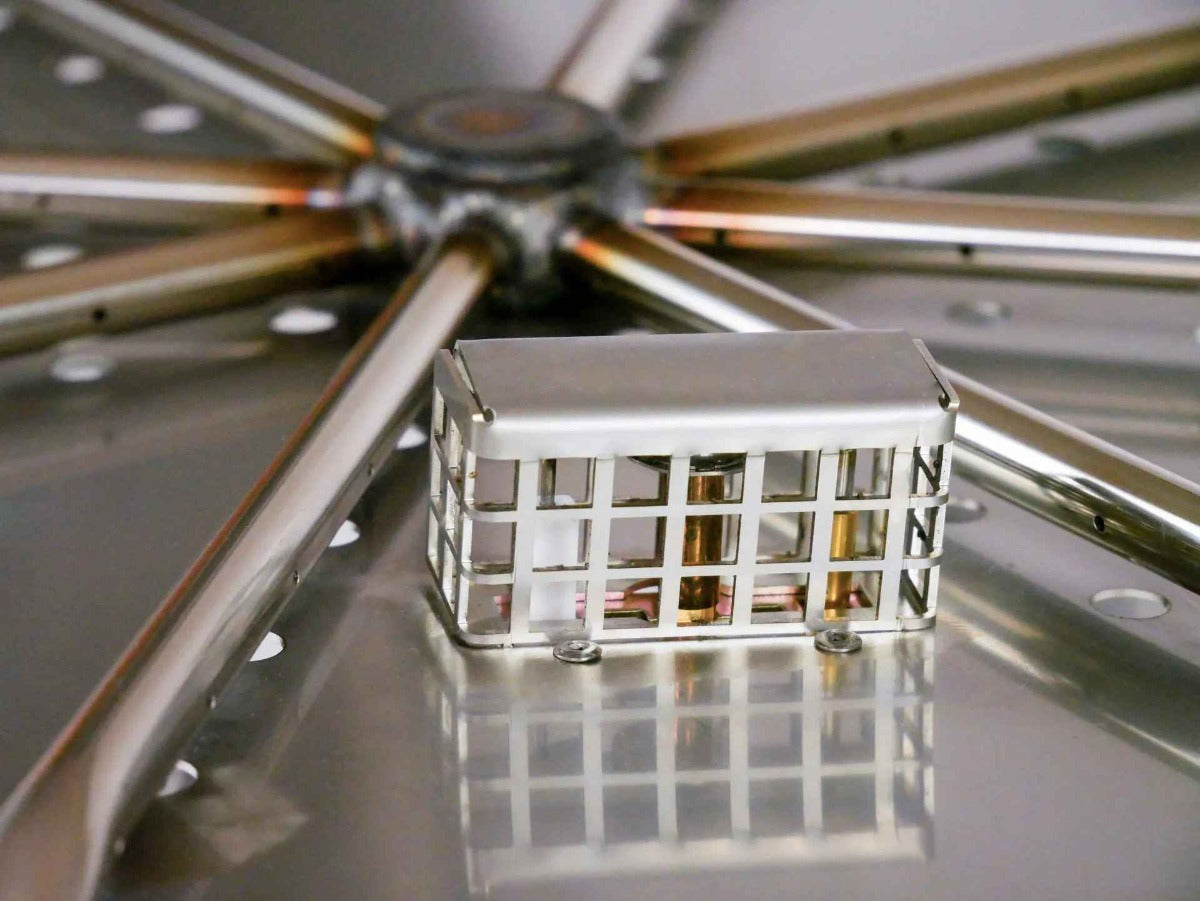

• Flame failure safety device

• CE approved

• Includes lava rock

If using Propane/LPG, Brightstar Fires strongly recommends using a 19kg propane gas tank with their fire pits for the best performance. The Brightstar fire pits are designed to work with the larger tank, ensuring longer enjoyment times and steady heat.

For a perfect fit, we also suggest using Brightstar Fires’ regulator. It’s made and tested to work with their fire pits and 19kg screw-in propane tanks.

Square Fire Pit Gas Burner Kit Specifications

• Burner Size: 60 x 60 cm

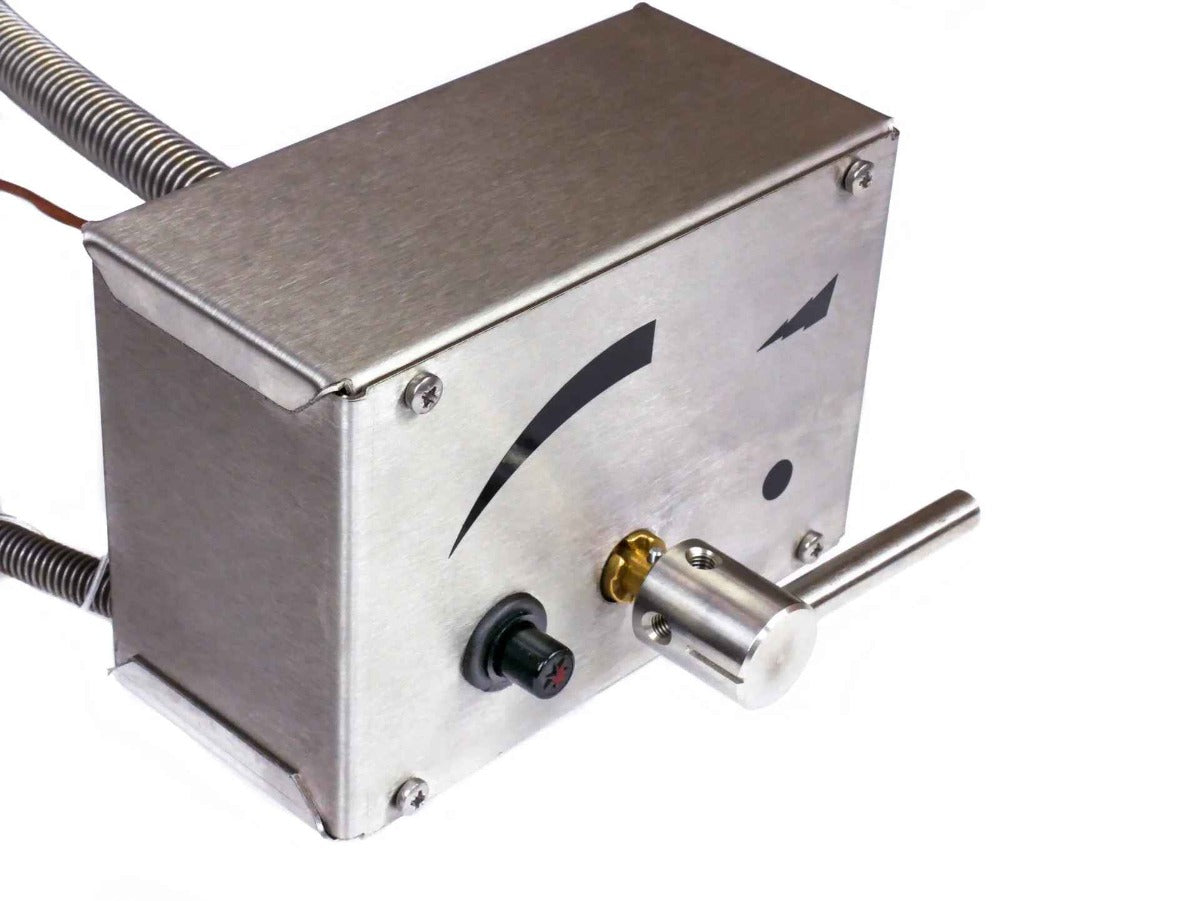

• Control Box Size: 160 x 110 x 72 mm

• Heat Output: 18 kW max (adjustable)

• Material: Stainless Steel

• Fuel: LPG bottle or mains natural gas

• LPG model comes with a 4m hose

• Connections: 575mm standard (optional extra 1200mm long)

Gas Connection Options (For LPG and Natural Gas)

This flexible pipework runs between the centre of the burner and the control box.

There are two connection lengths for the fire pit burner kit.

Standard Length – 575mm

• Works for most standard fire pits up to 1.2 meters wide

• This is included at no extra cost

Long Length – 1200mm

• For larger fire pits exceeding 1.2 meters wide

• There is an additional cost for this longer option (Please choose this option at checkout)

Choosing the Right Size

• Pick standard 575mm for most typical fire pit sizes

• Only upgrade to 1200mm if the fire pit is over 1.2 meters wide

• Excess length coils up inside the fire pit

• IMPORTANT: It cannot be extended later, so please choose carefully

Natural Gas Installations

When connecting the Burner Kit to a natural gas (mains gas) pipe, select either the 20mm or 25mm MDPE Installation Kit.

This kit connects your burner kit to the gas pipe. Your gas engineer can identify which size is required.

Any Questions?

Are you still trying to decide what to order?

We are here to help; please call us on 0800 949 4040 or email us at [email protected]

Optional Extras

• Metal Lid
