Brightstar Fires Rectangle Burner Kit
Rectangle Gas Fire Pit Burner Kit
Create a captivating atmosphere in your garden or outdoor space by designing your gas fire pit using the Brightstar Fires Rectangle Gas Fire Pit Burner Kit. They are designed for permanent installation into your outdoor landscaping.
Opt between Natural Gas (Mains Gas) or Propane Gas (LPG) to fuel your fire pit. The kit integrates seamlessly with non-combustible materials like concrete, bricks, or stone for a professional finish.

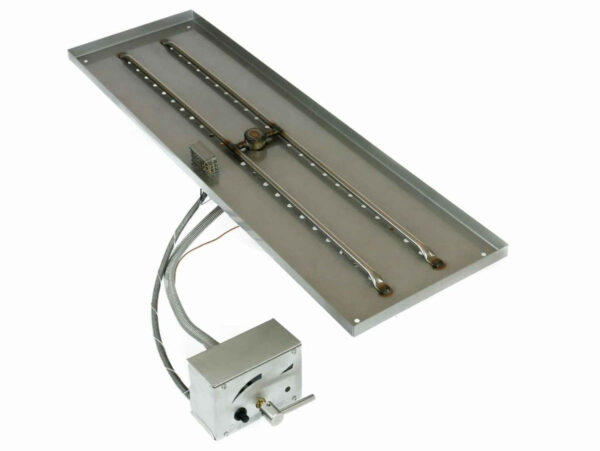

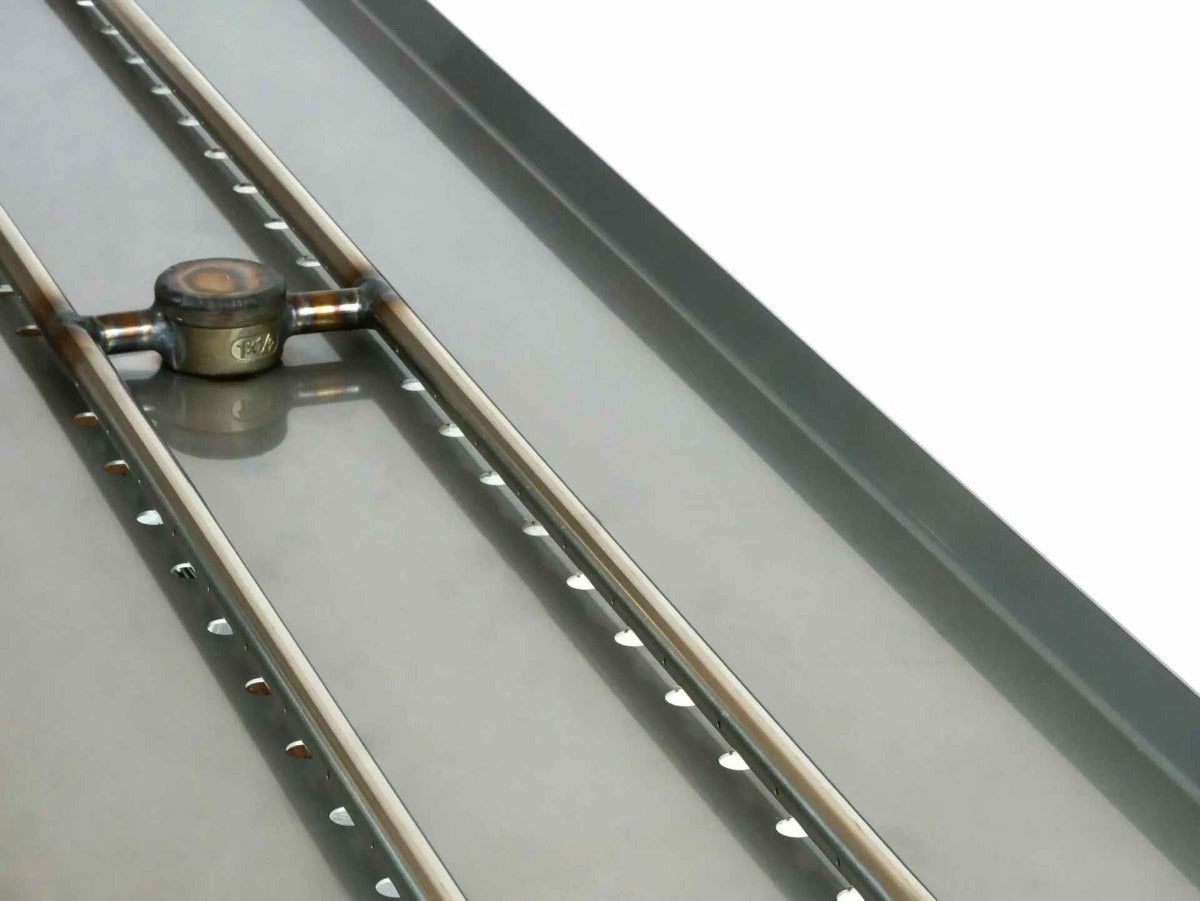

The Brightstar Fires Rectangle 100 x 30 cm stainless steel gas fire pit burner kit boasts a powerful 18kW heat output and two rows of burner jets. This configuration creates a long, impressive fire that captivates the eye and warms the body.
Control your fire’s atmosphere with the adjustable flame height, and get things started easily with the push-button battery ignitor—no mains power required.
Manufactured in the UK from resilient stainless steel, this rectangular gas fire pit burner kit offers all the components you need for a safe and stunning fire feature, including a lava rock to cover the burner.
Rectangle Gas Fire Pit Burner Kit Key Features
-
Made in the UK
-
Suitable for use with LPG bottle or mains natural gas
-
Robust 18kW maximum heat output
-
Flame height is adjustable
-
Equipped with a push-button battery ignitor
-
Flame failure safety device included
-
CE approved
-
Lava rock included
If using Propane/LPG, Brightstar Fires strongly recommends using a 19kg propane gas tank with their fire pits for the best performance. The Brightstar fire pits are designed to work with the larger tank, ensuring longer enjoyment times and steady heat.
For a perfect fit, we also suggest using Brightstar Fires’ regulator. It’s made and tested to work with their fire pits and 19kg screw-in propane tanks.
Rectangle Gas Fire Pit Burner Kit Specifications
-
Burner Size: 100 x 30 x 2.5 cm
-

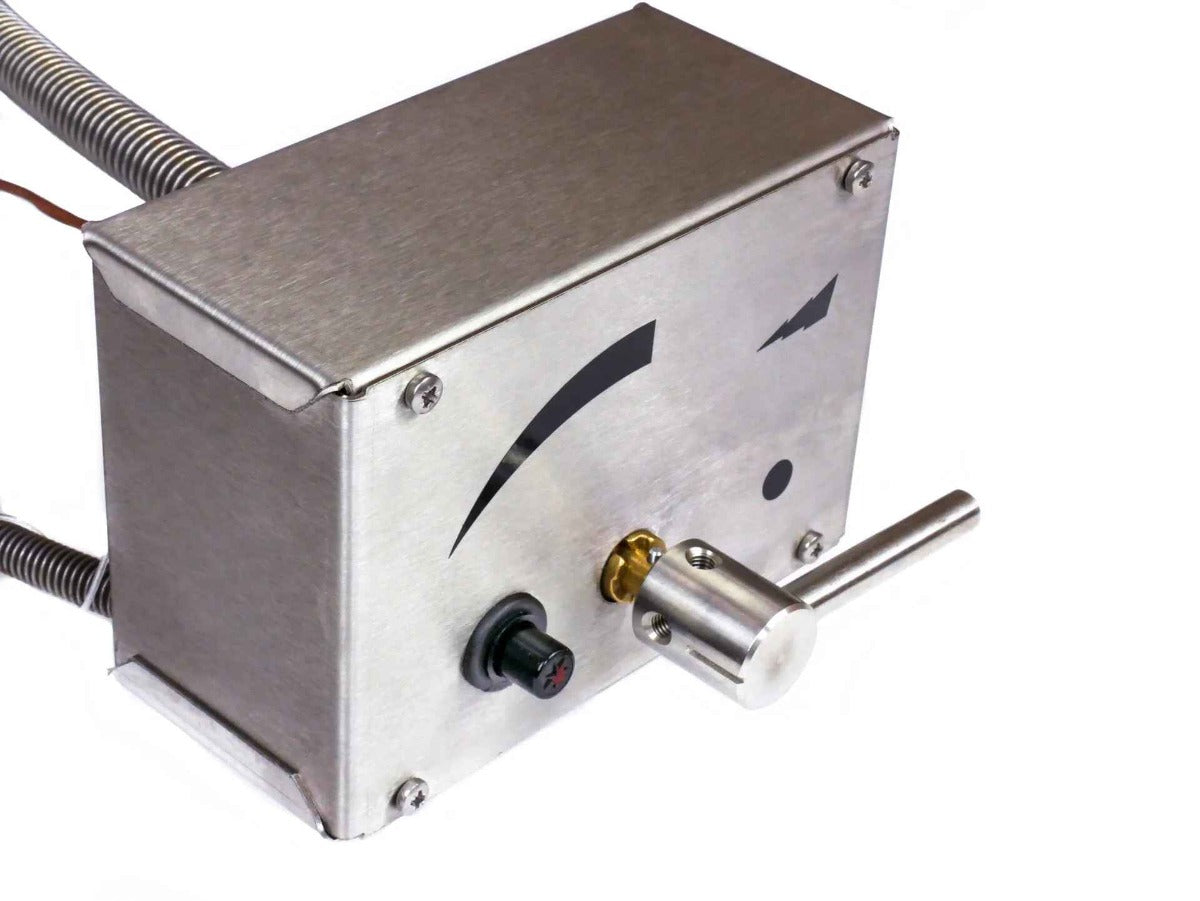

Control Box Size: 160 x 110 x 72 mm
-
Output Power: 18 kW maximum (adjustable)
-
Material: Stainless Steel
-
Gas Type: LPG Bottle, Mains Gas
-
LPG model comes with a 4m hose
-
Connections: Standard 575mm (Optional: Long 1200mm)
Gas Connection Options (For LPG and Natural Gas)
The flexible pipework runs between the centre of the burner and the control box.
Choose from two available lengths:
Standard Length – 575mm: Ideal for most fire pits up to 1.2 meters wide, at no extra cost.
Long Length – 1200mm: Recommended for fire pits larger than 1.2 meters wide, with an additional cost applicable (select this option at checkout).
Choosing the Right Size
For standard-sized fire pits, the 575mm option should suffice.
If your fire pit is larger than 1.2 meters, opt for the longer 1200mm connections.
IMPORTANT: Connections cannot be extended later, so select the right length from the outset.
Natural Gas Installations
Choose between the 20mm MDPE installation Kit or the 25 mm MDPE installation when connecting to a mains gas supply.
This will help you link your burner kit to the gas pipe. Consult with your gas engineer for the right size.
Any Questions?
Still undecided or need more information? Don’t hesitate to reach out for clarification.
